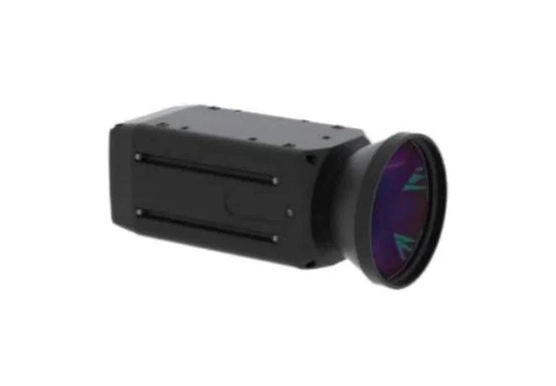

Focal length | 70mm～860mm continuous zoom |
Detector | 640×512 cooled MCT |
Wavelengh | 3.7μm-4.8μm |
Pixel spacing | 15μm |
NETD | ≤25mk@25℃ |
Cooling time | ≤8 minutes at room temperature |
Analog video output standard | PAL system analog video signal |
Digital video output | Cameralink/SDI |
Frame rate | 50Hz |
Control electrical interface | RS232 |
Correction | Manual correction, background correction |
polarity | White hot/black hot switching |
Digital zoom | ×2 、×4 Digital zoom |
weight | ≤9.5kg |
size | 420mm(L)×190mm(W)×190mm(H) |
Operating Voltage | Dc 24-32V, power supply with input polarity protection |
Power consumption | ≤15W@25℃, standard working state power consumption |
FOV | 0.64(H)×0.5°(V)to7.84°×6.3° ±10% |
Operating temperature | -30℃~+55℃ |
storage temperature | -40~+70℃ |
