Focal length | 15mm to 300mm |
Sensor | F/#=4;640*512 array, 15μm |
Wavelengh | 3μm to 5μm |
FOV | Wide field of view: 51.28°×42.01°; Narrow field of view: 1.83°×1.47° |
depth of field | 13m~infinity |
Coating | DLC protective film on the first surface, high transmittance anti-reflection film inside |
Distortion | <4% |
Optical back focus | 27.7mm |
Mechanical back intercept | 23.9mm |
weight | 0.7Kg |

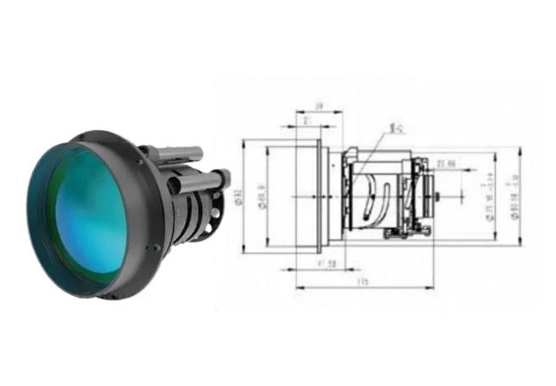

Opto-mechanical structure dimensions | 92mm(D)×115mm(L) |
Supply voltage | 12~30VDC wide voltage power supply |
rated power | ≤12W |
way of communication | Compatible with RS422 and RS485 communication, supports baud rate: 9600, 19200 (default), 38400, 57600, 115200, 230400 |
letter of agreement | Supports private protocol (default), Pelco-D protocol, Pelco-P protocol |
Single autofocus time | <1 second (in high speed mode) |
Zoom full travel time | <5 seconds @maximum speed of motor under normal temperature conditions |
Optical axis wobble amount | Less than 5 pixels |
NUC (out of focus) | support |
Working Temperature | -40° to 60℃ |
storage temperature | -40° to 70°℃ |
Front lens sealing level | IP66 |
