| Focal length | 75mm |
| F/# | 1 |
| Spectral Range | 8-12μm |
| Detector resolution and pixel | 640×512(12μm)、384×288(12μm) |
| FOV | 5.8°×4.6° 3.5°×2.6° |
| Transmittance | ≥88%(DLC) |
| Focus Mode | Electromotion Focus |
| Drive Voltage | DC12V |
| Weight | ≤0.7kg |

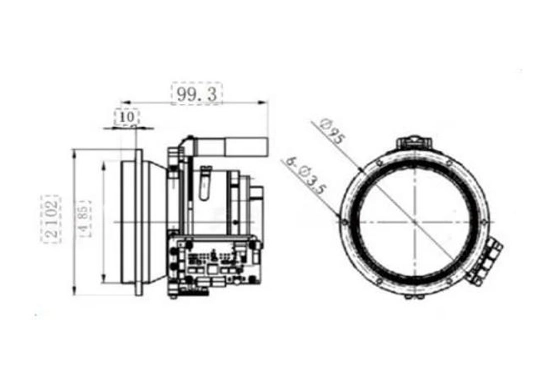

| Optical Machine Size | φ102×L99.3 |
| Operating Temperature | -40℃~+60℃ |
| Storage Temperature | -45℃~+70℃ |
| First piece protection class | IP67 |
| Support RS422/RS485 transparent communication with thermal camera | |
| Supports autofocus and external trigger focus | |
| Support online modification of lens magnification and focusing temperature calibration coefficient | |
| Equipped with lens calibration software | |
