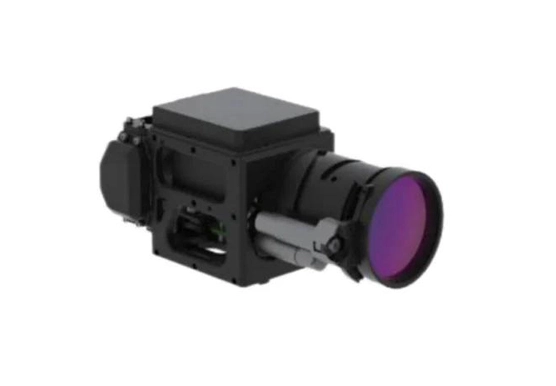

Focal length | 30mm~300mm continuous zoom |
Detector | 640×512 RefrigerationMCT |
Wavelengh | 3.7μm-4.8μm |
Pixel spacing | 15μm |
NETD | ≤25mk@25℃ |
Cooling time | ≤8 minutes at room temperature |
Analog video output standard | PAL system analog video signal |
Digital video output | Cameralink/SDI |
Frame rate | 50Hz |
Control electrical interface | RS232 |
Correction | Manual correction, background correction |
polarity | White hot/black hot switching |
electronic amplification | ×2, ×4 electronic amplification |
weight | ≤1.4kg |
size | 224mm(L)×974mm(W)×85mm(H) |
Operating Voltage | DC 18-32V, power supply with input polarity protection |
Power consumption | ÿ15W@25ÿ, standard working state power consumption |
field of view | 1.83°(H)×1.46°(V) to 18.3(H)×14.7°(V)±10% |
Operating temperature | -40℃~+60℃ |
storage temperature | -40~+70℃ |
