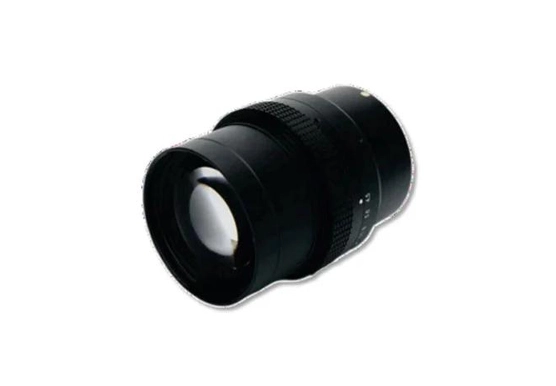

LS-Series Low Magnification Lens

line scan camera lens
  • line scan camera lens
Contact LEITH

Specifications of LS-Series Low Magnification Lens

Model No.ResolutionFocal length (mm)F-NumberImage FormatMagnifi cationWorking Distance (mm)Flange Focal Distance (mm)Conjugate distance (mm)TV DistortionMountFilter ThreadDimension (mm)Weight（g）
LEITH- LSA4040V- 0.227X16K3.5μ40F4.0~F1 6Φ600.004X9987.71210130.3/M72X0.75/ M58X0.75M72X0.75Φ76 X140839@M72
0.14X280428.5
0.227X170.2322.3
LEITH- LSA9040V- 0.14X16K3.5μ90F4.0~F1 6Φ640.08X1229.2±581.3±0.51123.50.01%V-MountM58×P 0.75Φ62.8 X 68.6402
0.1X992.4±582.7±0.5（φ56）
0.14X722±587±0.5
LEITH- LSA9540V- 0.08X16K3.5μ95F4.0~F1 6Φ620.03X3247.18±579.26±0.52112.940.01%V-MountM58×P 0.75Φ62.8 X 75.1456
0.05X1980.85±581.2±0.5（φ56）
0.08X1253.35±584.11±0.5
LEITH- LSA10038V- 0.8X16K3.5μ100F3.8~F1 6Φ660.7X232±5174.7444.80.00%V-MountM45×P 0.5Φ55.7X6 8325
0.75X220.8±5180.5（φ49）
0.8X211±5186.4
LEITH- LSA11438V- 0.28X16K3.5μ114F3.8~F1 6Φ660.23X555.5±5124.72±0.5672.16＜0.01%V-MountM45×P 0.5Φ55.7X7 2.06334
0.26X497.85±5128.3±0.5（φ49）
0.28X466.6±5130.47±0.5
LEITH- LSA11638V- 0.3616K3.5μ116F3.8~F1 6Φ66-0.31434.7±5134.7595＜0.001%V-MountM45×P 0.5Φ55.7X7 2.1336.8
-0.33412±5137（φ49）
-0.36382.8±5140.5
LEITH- LSA11638V- 0.45X16K3.5μ116F3.8~F1 6Φ660.38X368.69±5139.85±0.5530.1＜0.007%V-MountM45×P 0.5Φ55.7X7 1.94335.4
0.42X339.74±5144.5±0.5（φ49）
0.45X321.15±5147.96±0.5
LEITH- LSA11638V- 0.54X16K3.5μ116F3.8~F1 6Φ660.46X315.9±5148.84960.00%V-MountM45×P0.5Φ55.7X 71.9336
0.469X311.2±5149.8（φ49）
0.5X296.2±5153.3
0.54X278.7±5158
LEITH- LSA11638V- 0.67X16K3.5μ116F3.8~F1 6Φ820.59X257.04±5159.26±0.5458.9＜0.005%V-MountM45×P0.5Φ55.7X 71.9328.8
0.625X249.9±5163.6±0.5（φ49）
0.67X234.02±5168.34±0.5
LEITH- LSA11638V-0.7X16K3.5μ116F3.8~F1 6Φ660.65X242.7±5167.9±0.5453.50.10%V-MountM45×P0.5Φ55.7X 71.9330
0.67X237.4±5170.2±0.5（φ49）
0.7X230.1±5173.6±0.5
LEITH- LSA11638V- 0.75X16K3.5μ116F3.8~F1 6Φ660.66X240.1±5169.4447.20V-MountM45×P0.5Φ55.7X 69.5326
0.7X229.4±5174.4（φ49）
0.75X219.3±5179.7
LEITH- LSA11638V- 0.86X16K3.5μ116F3.8~F1 6Φ820.75X221±5179.35437.10.01%V-MountM45×P0.5Φ55.7X 68/
0.8387X204.1±5189.5（φ49）
0.86X20.1.4±5191.06
LEITH- LSA11638V- 1.07X16K3.5μ116F3.8~F1 6Φ660.93X192.48±5201.4±0.5439.45＜0.0005%V-MountM45×P0.5Φ55.7X 71.68330.2
1X184.16±5209.47±0.5（φ49）
1.07X176.28±5217.5±0.5
LEITH- LSA11638V- 1.47X16K3.5μ116F3.8~F1 6Φ841.25X161.9±5234.5444.50.00%V-MountM45×P0.5Φ55.7X 68325
1.33X156.3±5243.7（φ49）
1.47X148.1±5259.8
LEITH- LSA11638V-1.6X16K3.5μ116F3.8~F1 6Φ841.3X155.7±5240.9±0.5453.70.08%V-MountM45×P0.5Φ55.7X 71.9330
1.5X143.9±5263.8±0.5（φ49）
1.6X139.1±5275.3±0.5
LEITH- LSA11638V- 1.73X16K3.5μ116F3.8~F1 6Φ841.65X139.9±5280.34700.05%V-MountM45×P0.5Φ55.7X 71.9330
1.7X137.8±5286.1（φ49）
1.73X136.7±5289.6
LEITH- LSA11638V- 2.25X16K3.5μ116F3.8~F1 6Φ841.75X135.7±5292.2±0.54960.00%V-MountM45×P0.5Φ55.7X 71.9/
2X127.2±5322.8±0.5（φ49）
2.25X121±5350.9±0.5
LEITH- LSA11638V-4X16K3.5μ116F3.8~F1 6Φ842.5X119.2375.9591.30.00%V-MountM45×P0.5Φ55.7X 72.1/
3X114.4433.9（φ49）
4X98.6606.9
LEITH-LSB8040V- 0.33X16K5μ80F4.0~F 16Φ800.04X2071.87/2175.99/F/M42/ M58/M7 2/M90M43X0.75Φ60X115349@M90mount
0.14X634.37746.48
0.33X303.32430.61
LEITH- LSB11638V-0.3X16K5μ116F3.8~F 16Φ820.22X767.64±5155.15874.30.00%V-MountM50×P0.5/395
0.26X663.34±5160.95（φ49）
0.3X587.64±5166.85
LEITH- LSB11638V-0.67X16K5μ116F3.8~F 16Φ820.59X245.9163.6455.30.17%V-MountM45×P0.5Φ55.7x71.9/
0.67X
LEITH- LSB11638V-0.86X16K5μ116F3.8~F 16Φ820.75X204.1189.5437.10.01%V-MountM45×P0.5Φ55.7x68/
0.86X
LEITH- LSB11638V-0.92X16K5μ116F3.8~F 16Φ820.8X199193.1435.50.01%V-MountM45×P0.5Φ55.7x68/
0.92X
LEITH- LSB11638V-1.47X16K5μ116F3.8~F 16Φ841.25X156.3243.7444.50.00%V-MountM45×P0.5Φ55.7x68/
1.47X
LEITH- LSB11638V-1.6X16K5μ116F3.8~F 16Φ841.3X143.9263.8453.70.08%V-MountM45×P0.5Φ55.7x71.9/
1.6X
LEITH- LSB11638V-1.73X16K5μ116F3.8~F 16Φ841.65X137.8286.14700.05%V-MountM45×P0.5Φ55.7x71.9/
1.73X
LEITH- LSB11638V-2.25X16K5μ116F3.8~F 16Φ841.75X127.2322.84960.00%V-MountM45×P0.5Φ55.7x71.9/
2.25X
LEITH- LSB11638V-4.5X16K5μ116F3.8~F 16Φ842.5X111.4433.9591.30.00%V-MountM45×P0.5Φ55.7x72.1/
4.5X
LEITH- LSB12040V-2.4X16K5μ120F4.0~F 16Φ821.7X166.35424.31636.990.00%V-MountM52×P0.5Φ54.5x79.97/
2.4X
LEITH- LSB12040V-0.38X16K5μ120F4.0~F 16Φ820.29X599.5±5163±0.55950.00%V-MountM45×P0.5Φ55.7X79.97336
0.33X534.64±5169.37±0.（φ49）
0.38X544.5±55


176±0.5
LEITH- LSB12040VA- 0.38X16K5μ120F4.0~F 16Φ820.29X534.64169.37757.630.01%V-MountM52×P0.5Φ55.7/
0.38X
LEITH- LSB12040V-0.57X16K5μ120F4.0~F 16Φ820.43X390.66192.71636.990.00%V-MountM52×P0.5Φ54.5x79.97/
0.57X
LEITH- LSB12040V-0.72X16K5μ147.6F4.5~F 16Φ820.6X321.2215.3590.50.01%V-MountM52×P0.75Φ54.5x79.97/
0.72X
