| Focal length | 22.5-90mm |
| F/# | 1.1 |
| Spectral Range | 8-12μm |
| Detector resolution and pixel | 640×512(17μm)、336×256(17μm) |
| FOV | 27.1°×21.9°~6.9°×5.5° 14.4°×11°~3.6°×2.7° |
| Transmittance | ≥80%(DLC) |
| Focus Mode | Electromotion Focus |
| Drive Voltage | DC12V |
| Weight | ≤2kg |

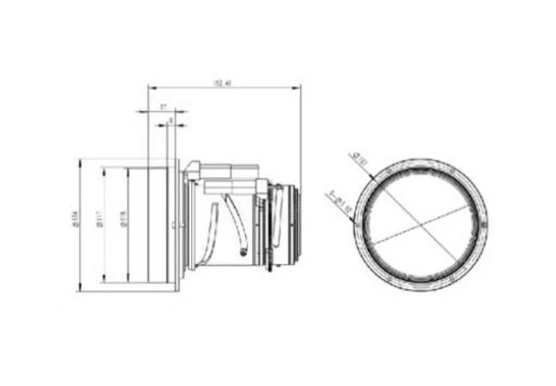

| Optical Machine Size | φ134×L153 |
| Operating Temperature | -40℃~+60℃ |
| Storage Temperature | -45℃~+70℃ |
| First piece protection class | IP67 |
| Support RS422/RS485 transparent communication with thermal camera | |
| Supports autofocus and external trigger focus | |
| Support online modification of lens magnification and focusing temperature calibration coefficient | |
| Equipped with lens calibration software | |
