LWIR Manual Focus Lens 25mm/F1.0 MAX-LFL2510-8

Specifications of LWIR Manual Focus Lens 25mm/F1.0 MAX-LFL2510-8

Focal length25mm
F/#1
Spectral Range8-12μm
Detector resolution and pixel640×512(12μm)、384×288(17μm)
FOV17.5°×14° 15°×11.2°
Transmittance≥88%(DLC) ≥94%(AR)
Focus ModeManual Focus
Drive VoltageDC12V
Weight≤0.2kg

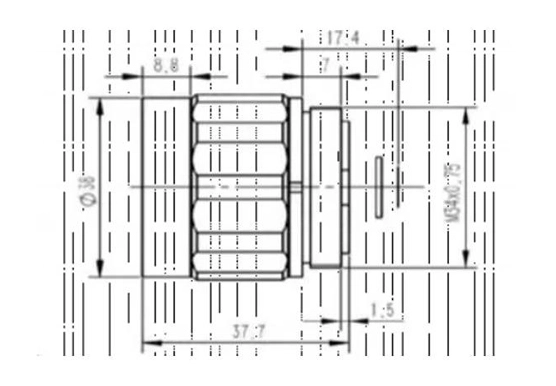

Optical Machine Sizeφ38×L37.7
Operating Temperature-40℃~+60℃
Storage Temperature-45℃~+70℃
First piece protection classIP67
Support RS422/RS485 transparent communication with thermal camera
Supports autofocus and external trigger focus
Support online modification of lens magnification and focusing temperature calibration coefficient
Equipped with lens calibration software
