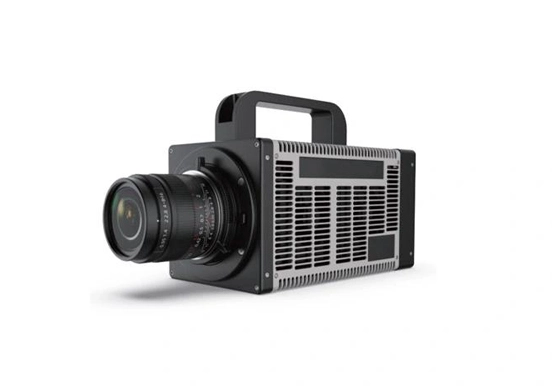

| Model No. | LEITH-HSC20-25000G |
| Full Resolution | 2048×1024 |
| Full Frame Rate | 4000fps |
| Maximum Frame Rate | 25000fps |
| Minimum Exposure Time | 1μs |
| Pixel Size | 9μm |
| Standard RAM | 40G，80G，160G Optional |
| Extended Memory | 4T，12T，20T Optional |
| Dynamic Range | 60dB |
| Analog Gain | ×2、×4、×8 |
| Bit Resolution | 8bit/10bit/12bit |
| Shutter Mode | Global |
| Color | Mono/Color |
| ROI | Support |
| Lens Mount | E mount，F mount，C mount，EF mount with transfer ring |
| Data lnterface | 10 Gigabit Ethermet,Gigabit Ethernet |
| Sensitivity | lS010O0O(M),ISO300(C) |
| Fan Control | support on/off ,rotation speed automatic adapt |
| Operating Temperature/Humidity | Standard-10~50°C, below95%(no drew) , customized-35~65°C optional |
| Video Signal Output | SDl，Ethermet |
| Recording Mode | Start，End，Center，Random，Manual |
| Trigger Mode | Manual，l0， image |
| External Signal | Input: trigger(TTL/switch)signal sync signal，ready signaleventsignal，IRIGB signal; Output:trigger(TTL/switch) signal sync，signal, readysignal. exposure signal, recording signal |
| Power Supply | Dual power supply，DC24V |
| Dimensions (excluding lens) | 217Dx10Wx110H，protrusion not included |
| Weight | 3.8kg |
| Power Consumption | 55w |
| Standard Accessories | power cablexl，AC adapterx1, cablex1，softwarexl, user manualxl, certificate of analysisx1 |
