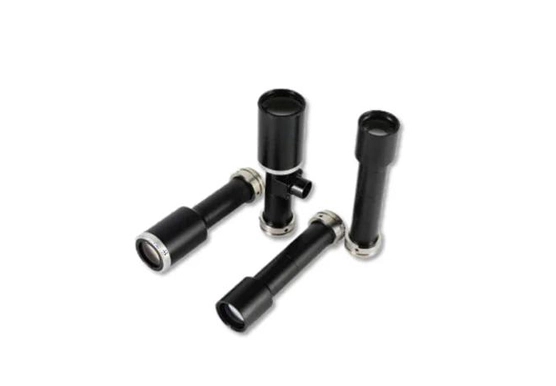

Name: 110mm High Resolution Telecentric Len
Brand: LEITH PTE. LTD.

Specifications of 110mm High Resolution Telecentric Len

Model No.	Magnific ation (X)	Working Distance (mm)	Object View (mm)	Image Field (mm)	Resolution (μm)	Aperture (f/#)	NA	Telecent ricity	Field Of View (mm)			Optical Distortion	MTF30（lp/ mm）	Depth Of Field (mm)	O/I	Mount	Whether Coaxial	Dimension (mm)	Weight (kg)
								(°)	（H×V）
LEITH- ST02X110- 230	0.2	110	/	/	23.25	F7.8	0.012	<0.1	2/3”			<0.05%	/	8.775	/	C	NO	φ70×13 4.92	344
LEITH- ST02X110- 230C	0.2	110	/	/	23.25	F7.8	0.012	<0.1	2/3”			<0.05%	/	8.775	/	C	YES	φ70×13 8.21	360
LEITH- ST03X110- 120	0.3	110	26.7	8	33	F15	0.01	0.03	1/2"	21.3	16	0.31%	65	18.1	261.5	C	NO	φ43*13 4	/
									1/3"	16	12
LEITH- ST03X110- 120C	0.3	110	26.7	8	33	F15	0.01	0.03	1/2"	21.3	16	0.80%	65	18.1	264.6	C	YES	φ43*13 7.1	/
									1/3"	16	12
LEITH- ST03X110- 230	0.3	110	/	/	15.5	F7.9	0.019	<0.1	2/3”			<0.05%	/	3.95	/	C	NO	φ70×14 6.27	356
LEITH- ST03X110- 230C	0.3	110	/	/	15.5	F7.9	0.019	<0.1	2/3”			<0.05%	/	3.95	/	C	YES	φ70×14 9.56	372
LEITH- ST05X110- 120	0.5	110	16	8	22	F16.6	0.015	0.12	1/2"	12.8	9.6	0.17%	60	7	233.8	C	NO	φ29*10 6.3	/
									1/3"	9.6	7.2
LEITH- ST05X110- 110C	0.5	110	/	/	10.5	F8	/	＜0.06	1/2"	6.4	4.8	＜0.162%	25	3.5	/	C	YES	φ50×11 2.6	/
LEITH- HT05X110- 118C	0.5	110	/	/	12.61	F9.4	0.027	≤ 0.1°	1/1.8"	14.4	10.6	≤ 0.1%	/	3	/	C	YES	φ30x 99.9	92
									1/2"	12.8	9.6
									1/3"	9.6	7.2
LEITH- HT05X110- 230	0.5	110	/	/	12	F9.3	0.02688	≤ 0.1°	2/3"	16.88	14.14	≤ 0.1%	/	2.98	/	C	NO	φ35x 120.5	150
									1/1.8"	14.74	9.84
									1/2"	12.28	9.84
LEITH- HT05X110- 230C	0.5	110	/	/	12	F9.3	0.02688	≤ 0.1°	2/3"	16.88	14.14	≤ 0.1%	/	2.98	/	C	YES	φ35x 120.5	150
									1/1.8"	14.74	9.84
									1/2"	12.28	9.84
LEITH- HT08X110- 230	0.8	110	13.8	11	8.3	F10	0.04	<0.08	2/3"	10.6	8.8	0.00012	100	1.7	244.8	C	NO	φ34x 117.2	/
									1/2"	8	6
									1/3"	6	4.5
LEITH- HT08X110- 230C	0.8	110	13.8	11	8.3	F10	0.04	<0.08	2/3"	10.6	8.8	0.00012	100	1.7	247.6	C	YES	φ34x 120.1	/
									1/2"	8	6
									1/3"	6	4.5
LEITH- HT10X110- 110	1	110	17.6	17.6	6.5	F10	0.051	<0.08	1.1"	14.2	10.4	<0.08%	＞0.3@100	1.1	279	C	NO	φ50x 151.5	/
									2/3"	8.5	7.1
									1/2"	6.4	4.8
LEITH- HT10X110- 110C	1	110	17.6	17.6	6.5	F10	0.051	<0.08	1.1"	14.2	10.4	<0.08%	＞0.3@100	1.1	279	C	YES	φ50x 151.5	/
									2/3"	8.5	7.1
									1/2"	6.4	4.8
LEITH-HT10X110-230	1	110	11	11	7.3	F11.1	0.045	<0.07	2/3"	8.5	7.1	0.0003	90	1.2	254.3	C	NO	φ34x12 6.7	/
									1/2"	6.4	4.8
									1/3"	4.8	3.6
LEITH-HT10X110-230C	1	110	11	11	7.3	F11.1	0.045	<0.07	2/3"	8.5	7.1	0.00032	90	1.2	257	C	YES	φ34x12 9.5	/
									1/2"	6.4	4.8
									1/3"	4.8	3.6
LEITH-HT10X110A-230	1	110	/	/	7.4	F11	0.04545	≤ 0.1	2/3"	8.44	7.07	≤ 1%	/	0.88	/	C	NO	φ30x12 8.5	150
									1/1.8"	7.37	4.92
									1/2"	6.14	4.92
LEITH-HT10X110A-230C	1	110	/	/	7.4	F11	0.04545	≤ 0.1	2/3"	8.44	7.07	≤ 1%	/	0.88	/	C	YES	φ30x13 0.4	150
									1/1.8"	7.37	4.92
									1/2"	6.14	4.92
LEITH- HT15X110- 110	1.5	110	11.7	17.6	5.1	F11.5	0.065	<0.1	1.1"	9.5	6.9	0.00082	＞0.3@85	0.57	310	C	NO	φ50x18 2.5	/
									2/3"	5.6	4.7
									1/2"	4.3	3.2
LEITH- HT15X110- 110C	1.5	110	11.7	17.6	5.1	F11.5	0.065	<0.1	1.1"	9.5	6.9	0.00082	＞0.3@85	0.57	310	C	YES	φ50x18 2.5	/
									2/3"	5.6	4.7
									1/2"	4.3	3.2
LEITH-HT15X110-120	1.5	110	/	/	7	F13.2	0.05682	≤ 0.1	1/2"	4.09	3.28	≤ 1%	/	0.5	/	C	NO	φ16x10 4.3	100
									1/3"	3.2	2.4
									1/4"	2.13	1.6
LEITH-HT15X110-120C	1.5	110	/	/	7	F13.2	0.05682	≤ 0.1	1/2"	4.09	3.28	≤ 1%	/	0.5	/	C	YES	φ16x1 04.3	100
									1/3"	3.2	2.4
									1/4"	2.13	1.6
LEITH-HT15X110-230	1.5	110	7.3	11	5.2	F11.8	0.063	<0.15	2/3"	5.6	4.7	0.00023	85	0.59	249.1	C	NO	φ30x1 21.6	/
									1/2"	4.3	3.2
									1/3"	3.2	2.4
LEITH-HT15X110-230C	1.5	110	7.3	11	5.2	F11.8	0.063	<0.15	2/3"	5.6	4.7	0.00023	85	0.59	249.1	C	YES	φ30x1 21.6	/
									1/2"	4.3	3.2
									1/3"	3.2	2.4
LEITH-HT20X110-230	2	110	5.5	11	4.5	F13.5	0.073	<0.15	2/3"	4.2	3.5	0.00036	75	0.37	257.1	C	NO	φ30x1 29.6	/
									1/2"	3.2	2.4
									1/3"	2.4	1.8
LEITH-HT20X110-230C	2	110	5.5	11	4.5	F13.5	0.073	<0.15	2/3"	4.2	3.5	0.00036	75	0.37	257.1	C	YES	φ30x1 29.6	/
									1/2"	3.2	2.4
									1/3"	2.4	1.8
LEITH-HT30X110-120	3	110	/	/	7.8	F34	0.04412	≤ 0.1°	1/2"	2.05	1.64	≤ 1%	/	0.55	/	C	NO	φ16x1 17.1	100
									1/3"	1.6	1.2
									1/4"	1.07	0.8
LEITH-HT30X110-230	3	110	3.7	11	4	F18.2	0.083	<0.15	2/3"	2.8	2.4	0.00037	55	0.22	259.7	C	NO	φ30x1 32.2	/
									1/2"	2.1	1.6
									1/3"	1.6	1.2
LEITH- HT30X110- 230C	3	110	3.7	11	4	F18.2	0.083	<0.15	2/3"	2.8	2.4	0.00037	55	0.22	259.7	C	YES	φ30x13 2.2	/
									1/2"	2.1	1.6
									1/3"	1.6	1.2
LEITH-HT40X110- 120	4	110	/	/	7.3	F36.3	0.0551	≤ 0.1	1/2"	1.54	1.23	≤ 1%	/	0.2	/	C	NO	φ16x13 2.5	100
									1/3"	1.2	0.9
									1/4"	0.8	0.6
LEITH-HT40X110- 120C	4	110	/	/	6.1	F36.3	0.0551	≤ 0.1	1/2"	1.54	1.23	≤ 1%	/	0.2	/	C	YES	φ16x13 2.5	100
									1/3"	1.2	0.9
									1/4"	0.8	0.6
LEITH- HT40X110- 230	4	110	2.8	11	3.7	F22.1	0.089	<0.04	1/2"	2.1	1.8	0.00055	45	0.13	262.7	C	NO	φ30x13 5.2	/
									1/3"	1.6	1.2
									1/4"	1.2	0.9
LEITH-HT40X110A-230	4	110	/	/	3.7	F22	0.0991	≤ 0.1	2/3"	2.11	1.77	≤ 0.1%	/	0.11	/	C	NO	φ30x11 0.2	150
									1/1.8 "	1.84	1.23
									1/2"	1.54	1.23
LEITH- HT40X110- 230C	4	110	2.8	11	3.7	F22.1	0.089	<0.04	2/3"	2.1	1.8	0.00055	45	0.13	262.7	C	YES	φ30x13 5.2	/
									1/2"	1.6	1.2
									1/3"	1.2	0.9
LEITH- HT60X110- 230	6	110	1.8	11	3.7	F33.2	0.089	<0.03	2/3"	1.4	1.2	0.0003	30	0.09	297	C	NO	φ30x16 9.5	/
									1/2"	1.1	0.8
									1/3"	0.8	0.6
LEITH- HT60X110- 230C	6	110	1.8	11	3.7	F33.2	0.089	<0.03	2/3"	1.4	1.2	0.0003	30	0.09	297	C	YES	φ30x16 9.5	/
									1/2"	1.1	0.8
									1/3"	0.8	0.6
