Focal length | 5 0 mm to 1 0 0 0 mm |
Detector | F/#=5.5;640*512 array, 15μm |
Wavelengh | 3μm to 5μm |
lens field of view | Wide field of view: 10.97°×8.78°; Narrow field of view: 0.55°×0.44° |
depth of field | depth of field |
Optical coating | DLC protective film on the first surface, high transmittance anti-reflection film inside |
Distortion | <5% |
Optical back focus | 25mm |
Mechanical back intercept | 24mm |
weight | About 5Kg |

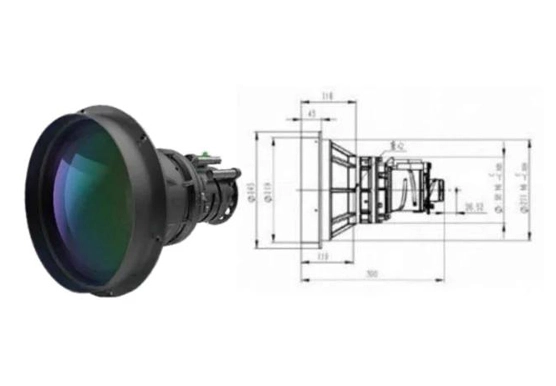

Opto-mechanical structure dimensions | 243mm(D)×300mm(L) |
Supply voltage | 12~30VDC wide voltage power supply |
rated power | ≤12W |
way of communication | Compatible with RS422 and RS485 communication, supports baud rate: 9600, 19200 (default), 38400, 57600, 115200, 230400 |
letter of agreement | Supports private protocol (default), Pelco-D protocol, Pelco-P protocol |
Single autofocus time | <4 seconds (in high speed mode) |
Zoom full travel time | <5 seconds @maximum speed of motor under normal temperature conditions |
Optical axis wobble amount | Less than 5 pixels |
NUC (out of focus) | support |
Operating temperature | -40° to 60℃ |
storage temperature | -40° to 70°℃ |
Front lens sealing grade | IP66 |
