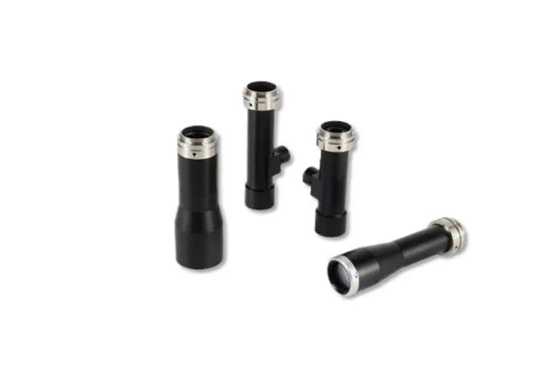

Name: 65mm High Resolution Telecentric Len
Brand: LEITH PTE. LTD.

Specifications of 65mm High Resolution Telecentric Len

Model No.	Magnific ation (X)	Working Distance (mm)	Object View (mm)	Image Field (mm)	Resolution (μm)	Aperture (f/#)	NA	Telecent ricity	Field Of View (mm)			Optical Distortion	MTF30（lp/ mm）	Depth Of Field (mm)	O/I	Mount	Whether Coaxial	Dimension (mm)	Weight (kg)
								(°)	（H×V）
LEITH-HT05X65-230C	0.5	65	22	11	12.8	F9.6	0.026	0.25	2/3"	16.9	14.1	<0.008%	110	4.3	187.6	C	YES	φ36x102.1	/
									1/2"	12.8	9.6
									1/3"	9.6	7.2
LEITH-HT05X65-230C	0.5	65	22	11	12.7	F9.6	0.026	0.26	2/3"	16.9	14.1	<0.001%	110	4.2	184.6	C	YES	φ36x102.1	/
									1/2"	12.8	9.6
									1/3"	9.6	7.2
LEITH- HT08X65-230	0.8	65	13.8	11	8.3	F10	0.04	0.08	2/3"	10.6	8.8	<0.086%	100	1.7	180.8	C	NO	φ30x 98.3	/
									1/2"	8	6
									1/3"	6	4.5
LEITH- HT08X65-230C	0.8	65	13.8	11	8.3	F10	0.04	0.07	2/3"	10.6	8.8	<0.083%	100	1.7	183.9	C	YES	φ30x 101.4	/
									1/2"	8	6
									1/3"	6	4.5
LEITH- HT08X65-230	0.8	65	/	/	8.4	F10	0.04	≤ 0.1	2/3"	10.55	8.84	≤ 0.1%	/	1.25%	/	C	NO	φ26x 89.7	150
									1/1.8 "	9.21	6.15
									1/2"	7.68	6.15
LEITH- HT10X65-110	1	65	17.6	17.6	4.6	F7	0.072	<0.21	1.1"	14.2	10.4	<0.007%	＞0.3@145	0.79	207.9	C	NO	φ39x 125.4	/
									2/3"	8.5	7.1
									1/2"	6.4	4.8
LEITH- HT10X65-110C	1	65	17.6	17.6	4.6	F7	0.072	<0.19	1.1"	14.2	10.4	<0.008%	＞0.3@145	0.79	212.1	C	YES	φ39x 129.6	/
									2/3"	8.5	7.1
									1/2"	6.4	4.8
LEITH- HT10X65-230	1	65	11	11	7.3	F11.1	0.045	0.06	2/3"	8.5	7.1	<0.038%	90	1.2	190.1	C	NO	φ30x 107.6	/
									1/2"	6.4	4.8
									1/3"	4.8	3.6
LEITH- HT10X65-230C	1	65	11	11	7.3	F11.1	0.045	0.06	2/3"	8.5	7.1	<0.039%	90	1.2	193.1	C	YES	φ30x 110.6	/
									1/2"	6.4	4.8
									1/3"	4.8	3.6
LEITH- HT10X65A-230	1	65	/	/	7.5	F11	0.04545	≤ 0.1	2/3"	8.44	7.07	≤ 0.1%	/	0.8	/	C	NO	φ26x 79.9	150
									1/1.8"	7.37	4.92
									1/2"	6.14	4.92
LEITH- HT10X65A- 230C	1	65	/	/	7.5	F11	0.04545	≤ 0.1	2/3"	8.44	7.07	≤ 0.1%	/	0.8	/	C	YES	φ26x 79.9	150
									1/1.8"	7.37	4.92
									1/2"	6.14	4.92
LEITH-HT15X65- 120	1.5	65	/	/	7	F17.3	0.04335	≤ 0.1	1/2"	4.09	3.28	≤ 0.1%	/	0.55	/	C	NO	φ16x 74.6	100
									1/3"	3.2	2.4
									1/4"	2.13	1.6
LEITH-HT15X65- 120C	1.5	65	/	/	7	F17.3	0.04335	≤ 0.1	1/2"	4.09	3.28	≤ 0.1%	/	0.55	/	C	YES	φ16x 74.6	100
									1/3"	3.2	2.4
									1/4"	2.13	1.6
LEITH-HT15X65- 230	1.5	65	7.3	11	5.2	F11.9	0.063	<0.15	2/3"	5.6	4.7	<0.105%	85	0.55	168.6	C	YES	φ25x 86.1	/
									1/2"	4.3	3.2
									1/3"	3.2	2.4
LEITH-HT15X65- 230C	1.5	65	7.3	11	5.2	F11.9	0.063	<0.15	2/3"	5.6	4.7	<0.105%	85	0.55	168.6	C	NO	φ25x 86.1	/
									1/2"	4.3	3.2
									1/3"	3.2	2.4
LEITH-HT20X65- 110	2	65	8.8	17.6	2.4-32.6	F7.1- 98.9	0.01~0.138	<0.21	1.1"	7.1	5.2	0.10%	＞0.3@135-10.5	0.20-2.8	232.9	C	NO	φ44x 150.4	/
									2/3"	4.2	3.5
									1/2"	3.2	2.4
LEITH-HT20X65- 110C	2	65	8.8	17.6	2.4-32.6	F7.1- 98.9	0.01~0.138	<0.21	1.1"	7.1	5.2	0.10%	＞0.3@135-10.5	0.20-2.8	232.9	C	YES	φ44x 150.4	/
									2/3"	4.2	3.5
									1/2"	3.2	2.4
LEITH-HT20X65-230	2	65	/	/	4.5	F13.2	0.07576	≤ 0.1	2/3"	3.54	4.22	≤ 0.1%	/	0.3	/	C	NO	φ26x 80	150
									1/1.8"	3.69	2.46
									1/2"	3.07	2.46
LEITH-HT20X65-230C	2	65	/	/	4.5	F13.2	0.07576	≤ 0.1	2/3"	3.54	4.22	≤ 0.1%	/	0.3	/	C	YES	φ26x 80	150
									1/1.8"	3.69	2.46
									1/2"	3.07	2.46
LEITH-HT21X65-230	2.14	65	5.1	11	4.5	F14.4	0.073	<0.11	2/3"	3.9	3.3	<0.041%	70	0.35	170.7	C	YES	φ25x 88.2	/
									1/2"	3	2.2
									1/3"	2.2	1.7
LEITH-HT21X65-230C	2.14	65	5.1	11	4.5	F14.4	0.073	<0.11	2/3"	3.9	3.3	<0.041%	70	0.35	170.7	C	NO	φ25x 88.2	/
									1/2"	3	2.2
									1/3"	2.2	1.7
LEITH- HT30X65- 110	3	65	5.9	17.6	2.1-32.3	F9.5- 147.3	0.01~0.157	<0.21	1.1"	4.7	3.5	0.09%	＞0.3@105-7	0.12-1.8	240.9	C	NO	φ44x 158.4	/
									2/3"	2.8	4.2
									1/2"	2.1	1.6
LEITH- HT30X65- 110C	3	65	5.9	17.6	2.1-32.3	F9.5- 147.3	0.01~0.157	<0.21	1.1"	4.7	3.5	0.09%	＞0.3@105-7	0.12-1.8	240.9	C	YES	φ44x 158.4	/
									2/3"	2.8	4.2
									1/2"	2.1	1.6
LEITH-HT30X65-230	3	65	3.7	11	3.5	F15.7	0.094	<0.15	2/3"	2.8	2.4	<0.038%	65	0.19	182	C	YES	φ25x 99.5	/
									1/2"	2.1	1.6
									1/3"	1.6	1.2
LEITH- HT30X65-230C	3	65	3.7	11	3.5	F15.7	0.094	<0.15	2/3"	2.8	2.4	<0.038%	65	0.19	182	C	NO	φ25x 99.5	/
									1/2"	2.1	1.6
									1/3"	1.6	1.2
LEITH- HT40X65-110	4	65	4.4	17.6	2.0-32.3	F11.8-194.9	0.01~0.165	<0.16	1.1"	3.6	2.6	0.09%	＞0.3@85-5	0.08-1.4	256.9	C	NO	φ44x 174.4	/
									2/3"	2.1	1.8
									1/2"	1.6	1.2
LEITH- HT40X65-110C	4	65	4.4	17.6	2.0-32.3	F11.8-194.9	0.01~0.165	<0.16	1.1"	3.6	2.6	0.09%	＞0.3@85-5	0.08-1.4	256.9	C	YES	φ44x 174.4	/
									2/3"	2.1	1.8
									1/2"	1.6	1.2
LEITH- HT40X65-230	4	65	2.8	11	2.9	F17.8	0.114	<0.11	2/3"	2.1	1.8	<0.064%	55	0.11	185.6	C	YES	φ25x 103.1	/
									1/2"	1.6	1.2
									1/3"	1.2	0.9
LEITH- HT40X65-230C	4	65	2.8	11	2.9	F17.8	0.114	<0.11	2/3"	2.1	1.8	<0.064%	55	0.11	185.6	C	NO	φ25x 103.1	/
									1/2"	1.6	1.2
									1/3"	1.2	0.9
LEITH- HT60X65-230	6	65	1.8	11	2.9	F26.6	0.114	<0.15	2/3"	1.4	1.2	<0.028%	35	0.08	211.8	C	NO	φ25x 129.3	/
									1/2"	1.1	0.8
									1/3"	0.8	0.6
LEITH- HT60X65-230C	6	65	1.8	11	2.9	F26.6	0.114	<0.15	2/3"	1.4	1.2	<0.028%	35	0.08	211.8	C	YES	φ25x 129.3	/
									1/2"	1.1	0.8
									1/3"	0.8	0.6
