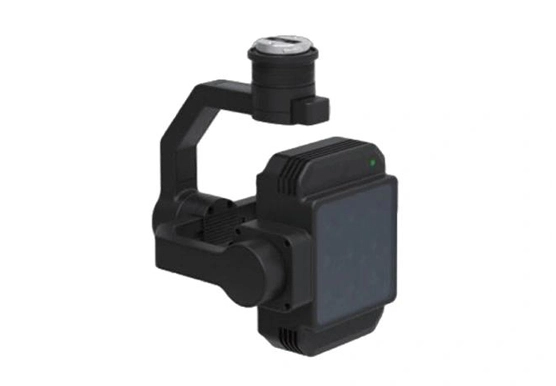

| Product Number | LEITH-SP15-1 |
| PTZ Parameters | |
| Installation Method | Detachable |
| Angular Gitter | ±0.01 |
| Controllable Rotation Range | Pitch: -120° to +30° |
| Structural Allowable Range | Yaw:±320° Pitch:-120° to +30° Roll: -55° to +55° |
| Maximum Control Speed | Max control speed 90°/s |
| Camera Parameters | |
| Multi-spectral lmaging | 7+RGB |
| Multi-spectral Bands | (Standard configuration)450nm, 550nm, 650nm,720nm (narrowband),750nm(narrowband),800nm,850nm (optional)410nm, 490nm, 530nm, 570nm, 600nm,680nm,720nm, 750nm, 780nm, 900nm |
| lmage Sensor | 1/2.9 inch CMOs, global shutter, 1.55 million pixels |
| lmage Resolution | 1440*1080 |
| Data Depth | 12bit |
| Optical Lens | Focal length f=5.35mm,Aperture F/2.0 |
| Field of View | HFOV: 49.8° ,VFOV:38.4° |
| Typical Width | 111*84m@h=120m |
| Ground Spatial Resolution | 7.74cm@h120m |
| Preview | The camera supports real-time preview function |
| Acquisition Frame Rate | Triggeracquisition, maximum 1frame/second (all channels) |
| Trigger Mode | Single trigger, timing trigger, overlap rate trigger |
| Spectral lmage Format | 16bit TIFF |
| Data Calibration and Correction | Spectral calibration, radiometric calibration illumination correction, distortion correction |
| Storage Capacity | MicroSD card, the standard capacity is 128G, the transmission speed is required to be Class10 or higher,the mode U3 or higher, and the video speed is v30 or higher |
| Device Interface | DJlX-Port, 6-core communication interface |
| Drone Platform | Supports DJlX-Port interface, matching DJl Matrice series drones(M200 V2/M210V2/M21ORTKV2/M3O0 RTK) |
| Dimensions (WxHxD) | Gimbal camera: 129 x145 x177mm, downlink light sensor: 75x47x31mm |
| Weight | Gimbal camera:780g, downlink light sensor: 54g |
Number of Bands:
Multispectral Imagery: Captures data in a limited number of broad spectral bands, typically ranging from 3 to 10 bands.
Hyperspectral Imagery: Captures data in a large number of narrow, contiguous spectral bands, often exceeding 100 bands.
Spectral Resolution:
Multispectral Imagery: Lower spectral resolution, as each band covers a wider range of wavelengths.
Hyperspectral Imagery: Higher spectral resolution, with each band covering a very narrow range of wavelengths, allowing for more detailed spectral information.
Data Volume:
Multispectral Imagery: Generates less data, making it easier to process and store.
Hyperspectral Imagery: Generates a large volume of data, requiring more advanced processing and storage capabilities.
Applications:
Multispectral Imagery: Commonly used in applications like agriculture, forestry, and land use mapping where broad spectral information is sufficient.
Hyperspectral Imagery: Used in more specialized applications like mineralogy, medical diagnostics, and environmental monitoring where detailed spectral information is crucial.
Light Collection:
Multispectral cameras collect light from the scene using a lens, similar to conventional cameras.
Spectral Filtering:
The collected light is passed through a series of spectral filters or a filter wheel. Each filter allows only a specific range of wavelengths (spectral band) to pass through.
Image Sensors:
The filtered light is then captured by image sensors, typically CCD or CMOS sensors, which convert the light into electrical signals.
Band Separation:
Each spectral band is captured separately, resulting in multiple images, each corresponding to a different spectral band.
Data Processing:
The captured images are processed and combined to create a multispectral image. This involves calibrating the data, correcting for any distortions, and aligning the images from different bands.
Analysis:
The multispectral image is analyzed to extract information based on the spectral properties of the objects in the scene. This can involve techniques like vegetation indices, material classification, and change detection.
By capturing and analyzing data across multiple spectral bands, multispectral cameras provide valuable information that is not available from conventional imaging systems.
