LM-Series Low Magnification Lens

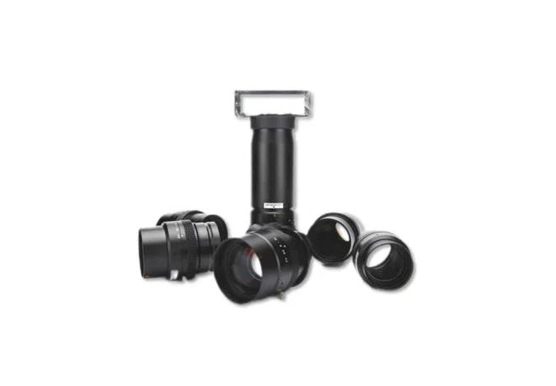

low magnification objective lens
  • low magnification objective lens
Contact LEITH

Specifications of LM-Series Low Magnification Lens

Model No.ResolutionFocal length (mm)F-NumberImage FormatMagnifi cationWorking Distance (mm)Flange Focal Distance (mm)Conjugate distance (mm)TV DistortionMountFilter ThreadDimension (mm)Weight（g）
LEITH-LMA2045V-0.1X4K7μ20F4.5~CΦ300.02X99912/0.20%M42×P1M43×0.75φ52.7x51.4243
0.1X150
LEITH-LMA2528V-0.2X4K7μ25F2.8 ~ F16Φ300.03X///<0.6%M42×P1M49 × 0.75φ53x58.1/
0.2X
LEITH-LMA2528VA-0.2X4K7μ25F2.8 ~ F16Φ320.03X20012269.50.60%M42xP1M48.5x0.75φ52x63.2/
0.2X
LEITH-LMA2530V-0.2X4K7μ25F3.0~F16Φ300.01X2491.212//M42X1.0M30.5X0.5φ46×34.2977
0.1X260.2
0.2X135.2
LEITH-LMA2840V-0.3X4K7μ28F4.0~CΦ300.05X59512/0.10%M42×P1M35×0.5φ48.1x54.9162
0.3X103














LEITH-LMA2845V-0.3X4K7μ28F4.5~CΦ300.05X///<0.1%M42×P1M35×0.5φ48.1x54.85/





0.3X/






LEITH-LMA2940V-0.3X4K7μ29F4.0~CΦ300.05X594.7±526±0.13680.10%V-Mount（φ42.5）M35x P0.5Φ46.3 X 45.7161.4
0.1X299.7±5
0.3X103.0±5
LEITH-LMA3528V-0.2X4K7μ35F2.8 ~ F16Φ420.001X∞12/0.40%M42×P1M58×0.75φ61x116622
0.2X163
LEITH-LMA3545V-0.1X4K7μ35F4.5~F16Φ3000.4X1008.49±535.81±0.5574.5﹤0.01%V-Mount（φ38）M37×P0.75φ46.4×39.6105
0.08X508.49±537.42±0.5
0.1X408.49±538.22±0.5
LEITH-LMA3540V-0.5X4K7μ35F4.0~F16Φ280///<0.02%M42×P1M30.5×0.5φ46x56.55/
0.5X
LEITH-LMA3540VA-0.5X4K7μ35F4.0~F16Φ300.01X351812//M42X1.0M30.5X0.5φ46×46.6581.5
0.1X368.3
0.5X88
LEITH-LMA4028V-0.22X4K7μ40F2.8 ~ F22Φ370.04X105112/0.62%M42×P1M37×0.75φ47.6x62.7171
0.22X200
LEITH-LMA4028V-0.33X4K7μ40F2.8~F22Φ43.20.4X1049.5±537.17±0.5498.480.50%V-Mount（φ38）M37×P0.75φ46.4×39.1110
0.1X429.9±539.62±0.5
0.33X141.7±549.05±0.5
LEITH-LMA4028VA-0.33X4K7μ40F2.8 ~ F11Φ430.04X///<0.62%M42×P1M37×0.75φ46.4x63.5/
0.33X
LEITH-LMA5040V-0.33X4K7μ50F4 ~ F22Φ370.01X∞12/0.21%M42×P1M52×0.75φ59x133.2615
0.33X150
LEITH-LMB4032V-0.33X8K5μ40F3.2~F16Φ430.04X1044.0946.51120.59/F/M42/M58/M72/M90M43x P0.75φ51×49.1167@F-mount
0.14X302.81383.43
0.33X132.08220.53
LEITH-LMB5028V-0.33X8K5μ50F2.8~F16Φ430.04X1275.1546.51351.86/F/M42/M58/M72/M90M43x P0.75φ60×49.31178@F-mount
0.14X380.36462.06
0.33X174.29265.46
LEITH-LMB6040V-0.4X8K5μ60F4.0~F16Φ430.03X210346.52103/F/M42/M58/M72M46x P0.75φ60×72243@F-mount
0.15X523523
0.40X288288
LEITH-LMC4040V-0.16X8K7μ40F4.0~F22Φ600.02X1982.1±512±0.5943.08﹤0.2%M72×P0.75M72×P0.75φ62×71.5983.3
0.05X818.8±5
0.16X256.3±5
LEITH-LMC4040VA-0.16X8K7μ40F4.0~F22Φ600.02X///<0.2%M72xP0.75M58.4 × 0.75φ74x96.9/
0.16X
LEITH-LMC6040V-0.33X8K7μ60F4.0~F32Φ640.04X1557.4±555.73±0.5496.320.60%V-Mount（φ38）M37x P0.75Φ46.4 X 33.1118.5
0.167X404.4±563.31±0.50.19%
0.33X218.97±573.48±0.50.12%
LEITH-LMC6040VA-0.33X8K7μ60F4.0~F16Φ600.04X1536.0646.51622.85/F/M42/M58/M72M43x P0.75φ60×53.77189@F-mount
0.14X461.84554.63
0.33X214.45318.63
LEITH-LMC6040V-0.75X8K7μ60F4.0~F22Φ600.2X32846.5437/F/M42/M58/M72M43x P0.75φ60×76379@F-mount
0.45X163287
0.75X108251
LEITH-LMC8040V-0.33X8K7μ80F4.0~F22Φ800.04X///<0.15%M72xP0.75M43×0.75φ78x106.42/
0.33X
LEITH-LMC8056V-0.167X8K7μ80F5.6~F32Φ620.13X591.181.54702.50.05%V-MountM39xP0.5φ46.4/
0.167X
LEITH-LMC8056V-0.4X8K7μ80F5.6~F32Φ640.2X453.71±594.8±0.5451.78＜0.03%V-Mount（φ38）M37x P0.75Φ46.4 X 33.1124
0.3X320.26±5102.92±0.5＜0.01%
0.4X253.68±5110.83±0.5＜0.01%
LEITH-LM10045V-0.25X8K7μ100F4.5~F22Φ660.15X860±5117827.80.01%V-Mount（φ64）M54×P0.75Φ68.8/
0.2X654.8±5123.5
0.25X538±5129.2
